Employing our superior Komax Gamma 333 wire processing machine and AMP K-press crimper, American Precision Assemblers manufactured a series of custom wire harnesses to be used in emergency vehicles.

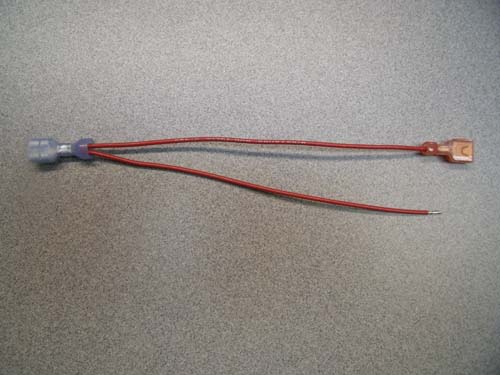

Performing a series of wire cutting, stripping, crimping, and tinning operations, we assembled this wire harness from 16 AWG wire with PVC insulation to measure precisely 6 inches in overall length with 2 branches. We also installed all plastic insulated terminals to the wires.

After assembly was complete, we performed a series of heightened final visual inspections to ensure that the wire harness fulfilled all customer requirements. The completed unit met IPC/WHMA-A-620 standards for both length and crimping.

We then used our KanBan software to package all appropriate quantities in bags which were labeled with part numbers, bar codes, and date codes, and shipped the parts in modular, recyclable containers to our customer’s facility in University Park, Illinois.

Specifications

Capabilities Applied/ProcessesWire Cutting
Wire Stripping
Tinning
Wire Crimping
Equipment Used to Manufacture PartKomax Gamma 333 wire processing machine
AMP K-press Crimper
Overall Part Dimensions18 AWG Wire
Over All Length: 6.00" with 2 branches
Connector TypesInsulated Fast-on Terminals
Tightest TolerancesIPC/WHMA-A-620 Standard for Length and Crimping
Material Used16 AWG Wire with PVC Insulation
Plastic Insulated Terminals
In process testing/inspection performedIn-process Inspection and Heightened Final Visual Inspection Performed
(No electrical test)
Estimated Part WeightApproximately 5 oz.
Industry for UseEmergency Vehicle
Packaging Packaged in KanBan Quantities
  • Each Bag Contains Part Number, Bar Code & Date Code
  • Shipped in Modular, Re-usable, Recyclable Containers
Delivery LocationUniversity Park, IL
Standards MetIPC/WHMA-A-620 and Customer Workmanship Standards
Product NamePositive Power Lead
