Electro Mechanical Pneumatic

Electro mechanical assembly is a broad term encompassing everything from wire and cable subassemblies to complete system assemblies, which are also known as box builds. An electro mechanical assembly depends on the integration of electrical components operating in tandem with mechanical components to perform key functions within complex electrical systems, like computer interfaces, fans, blowers, and screens. Essentially, these assemblies transform electrical impulses into mechanical movement or mechanical movement into electrical signals.

Electro mechanical pneumatic assemblies incorporate pneumatic parts and subassemblies, such as valves, pistons, and air regulators. Learn more about the benefits of these complex assemblies and American Precision Assemblers’ capabilities.

Benefits of Electro Mechanical Pneumatic Assemblies

There are many advantages in choosing and using electro mechanical pneumatic assemblies:

  • Integration efficiency. Since mechanical, electrical, and pneumatic components are already integrated within one assembly, there’s no need for separate units. This streamlines integration into the larger system, saving space, time, and cost.
  • Cost reduction. These assemblies decrease total labor costs and streamline production by combining multiple parts into one unit.
  • Increased reliability. Because individual parts are created and tested to function together as one unit, electro mechanical assemblies are more dependable and efficient than the components operating on their own.
  • Customization and flexibility. Custom electro mechanical assemblies can be created to meet precise needs, flexible in terms of design and functionality for specific applications.
  • Space savings. By combining multiple functions into one unit, the assembly saves space in the larger system, which is particularly important for small, portable devices.
  • Improved performance. Designed to work as a single cohesive unit, electro mechanical pneumatic assemblies improve functionality and performance of the final system.
  • Simplified installation and service. An assembled unit is easier to install and maintain, decreasing downtime and long-term costs.
  • Scalability. Electro mechanical pneumatic assemblies can be scaled up or down in manufacturing as needed without redesign or retooling requirements.
  • Quality control. Because it’s manufactured and tested as one unit, quality is uniform, minimizing the likelihood of incompatible components.
  • Rapid prototyping and time to market. Electro mechanical assemblies can speed up prototyping and testing stages, accelerating product development timelines and reducing time to market for new products.

American Precision’s Electro Mechanical Pneumatic Assembly Capabilities

American Precision Assemblers is a one-stop shop for electro mechanical pneumatic assemblies for the printing industry. We manually assemble and install pneumatic valves, coils, relays, gauges, tubing, and more to support business document processing and fluid pan equipment. We also offer comprehensive air, flow, leak, and vacuum testing to ensure proper operation. In addition to electro mechanical pneumatic assemblies, our team also provides value-added services such as product procurement, value engineering, reverse engineering, and design for manufacturability.

Our assembly options include everything from prototypes to low- to high-volume production runs. American Precision Assemblers is equipped for any size project with flexible manufacturing processes to accommodate unique customer needs.

Electro Mechanical Pneumatic Assemblies From American Precision Assemblers

American Precision Assemblers is a trusted source for wire harnesses, cable assemblies, and mechanical and electrical sub-assemblies. We support some of the world’s leading manufacturers across multiple sectors, including medical diagnostics, aviation, industrial marking, vehicle systems, safety and security, aerospace, and defense. As a trusted electro-mechanical assembler, APA is here to support your project.

For more information about our capabilities, browse our portfolio. To get started on a custom project, contact us or request a quote.

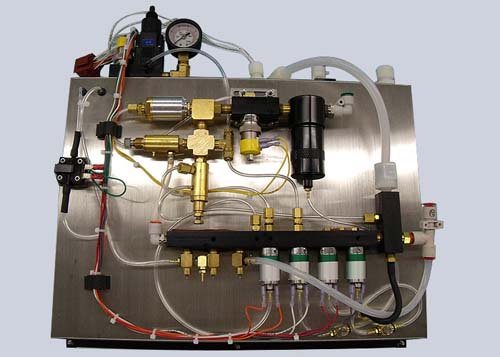

Examples of Electromechanical / Pneumatic Assemblies by American Precision Assemblers

Specifications

General Capabilities Contract
Assembly Capabilities Appliqué Application
Cutting
Drilling
Engraving
Installation
Assemble Several Different Variations of one Product
Components Assembled/Installed Manual Assembly:
Affix Doors to Enclosures
Cables & Wires
Coils
Gauges
Machined Parts
  • Manifolds
Pneumatic Valves
Relays
Tubing
Testing Functional Testing:
  • Air
  • Flow Testing
  • Vacuum
Production Volume One-Offs
Prototype
Low Volume to High Volume
Turn Around Times Consignment
J.I.T Deliveries
Kan-Ban Programs
Min-Max Programs
“Breadman” Stock Replenishment Programs
Daily Delivery Available
  • Delivery via APA vehicles; 50 mile radius
Value Added Services Manufacturability Improvements
Product Procurement
Reverse Engineering
Thru Hole Circuit Board Assembly
Value Engineering
Industry Focus Printing
Intended Application Fluid Pans
Business Document Process Machines
Industry Standards CSA - Canadian Standards Association (Compliant)
IPC
  • IPC WHMA-A-620
  • IPC-JSTD001D
Certified to AS9100 QMS Standard
ITAR - International Traffic in Arms Regulations (Registered)
Mil-Spec - Military Specifications
REACH - Registration Evaluation Authorization and Restriction of Chemical Substances
ROHS - Restriction of Hazardous Substances
UL - Underwriters Laboratories Inc. (Recognized Cable & Harness Manufacturer)
File Formats AutoCAD (DWG)
DXF - Drawing Interchange Format, or Drawing Exchange Format
GIF - Graphics Interchange Format
JPG or JEPG - Joint Photographic Experts Group
PDF - Portable Document Format
TIFF - Tagged Image File Format
